Surface Of Steel Perforated Raised Floor Use pc rooms, information
center

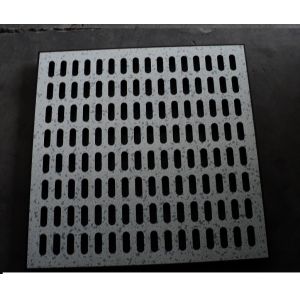

1.perforated panel
2.ventilationrate rate: 45%
3.Brand name:Fangsheng.
Perforated Raised Floor Description:
The structure of ventilation floor is similar with that of anti-static full-steel
raised floor but it has hollow cavity without foam stuffing.The
upper and lower steel paltes and upper cover of the floor are all
punched with ventilation holes.Matched with the full-steel raised
floor, the ventilation raised floor is used in the place where
ventilation is required under the floor, and the ventilation rate
of the floor is 17%-50%.
Perforated Raised Floor Character:
- Size 600*600*35mm
- Full steel. HPL or PVC punched tile
- Surface punched panel which is hard steel of Shanghai Bao steel,
- Manual welding for the bottom square tube. origination in domestic
- Imported paint. Anti-rust
- Prevent static validly fireproof, dustproof
- Exact dimension for the hole of tile and panel .good ventilation
function
- 17 % - 50 % ventilation rate . Satisfies different environmental
requirements
Technical parameter of Perforated Raised Floor:
Type | (mm)
Size | Concentrated Load
(deflection=2mm) | (N/M2)
Uniform Load | (N)
Ultimate limit Load | |
International | National Standard
SJ/T10796 | lb | N | kg |
AS450-TF | HDG600 30CQ | 600×600×30 | ≥450 | ≥1960 | ≥200 | ≥8850 | ≥5900 | ≤17% |
AS680-TF | HDG600 35QD | 600×600×35 | ≥680 | ≥2950 | ≥300 | ≥12500 | ≥8250 | ≤25% |
AS800-TF | HDG600 35QD | 600×600×35 | ≥800 | ≥3550 | ≥360 | ≥15000 | ≥10650 | ≤25% |
AS1000-TF | HDG600 35BD | 600×600×35 | ≥1000 | ≥4450 | ≥450 | ≥23000 | ≥13350 | ≤36% |
Notice: 1. It can arbitrary select the laying height of elevated floor.
2. The decorating surface of anti-electrostatic has high wearable
melamine wainscot and PVC wainscot of made in
China , joint venture and export.
3. The carrying capacity of pedestal is over 20KN and can match
with every type of elevated floor.
Use Area:
pc rooms, electricity office, information center, factory and
ventilation area etc.
Install sample:
